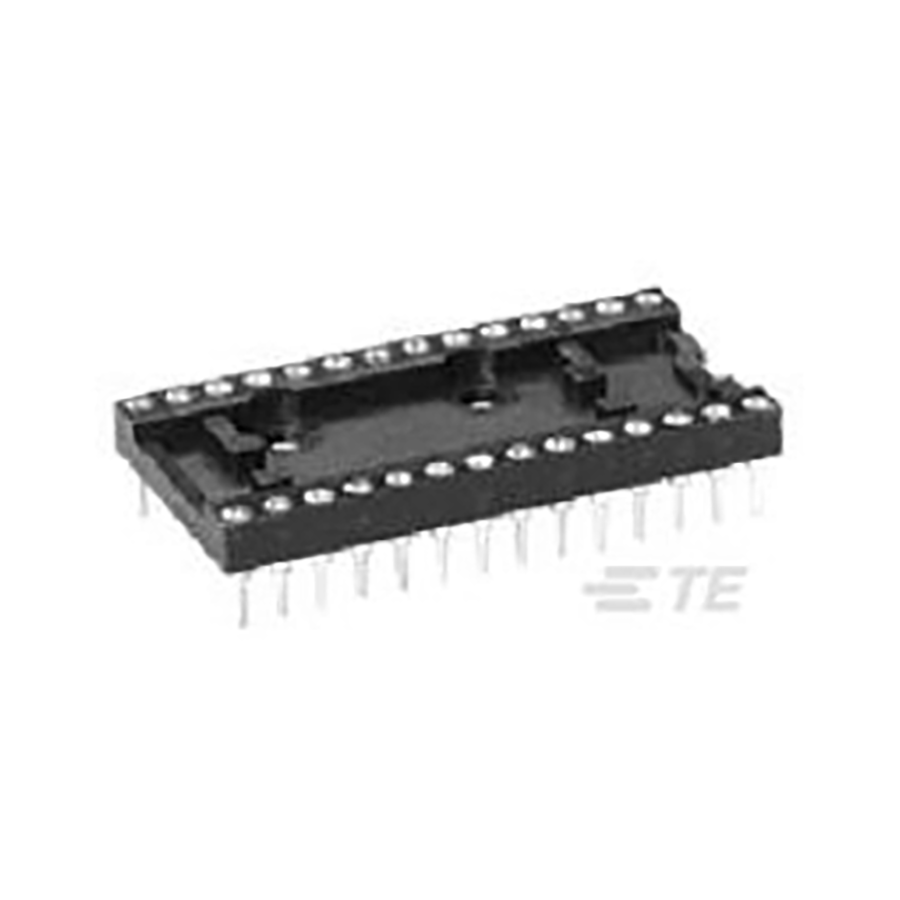

5-1571551-2
Manufacturer:
TE Connectivity
Mfr.Part #:
5-1571551-2
Datasheet:
Description:
IC and Component Sockets Through Hole Number of Positions:40 Number of Rows:2 Pitch:2.54 mm Row Spacing:13.5 mm
| Parameter | Value |
|---|---|
| Length | 50.8 mm |
| Width | 17.78 mm |
| Termination | Through Hole |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 40 |
| Packaging | Tube |
| Voltage Rating | 1000 V (1 kV) |
| Depth | 17.78 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 5 GΩ |
| Contact Plating | Gold |
| Lead Length | 3.18 mm |
| Contact Material(Contact Finish) | Copper |
| Pitch | 2.54 mm |
| Terminal Pitch | 2.54 mm |
| Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Gender | Female |
| Number of Contacts | 40 |
| ELV | Compliant |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Row Spacing | 13.5 mm |
| Insulation Material | Polyester |
| Housing Material | Thermoplastic |
| Contact Style | Screw |
| Contact Resistance | 10 mΩ |
